- 品牌：SD
- 线长：可定制
- 工作电压：5v
- 工作电流：300ma
- 货号：咨询客服
- 产品规格：详询客服*10*详询客服*详询客服
- 规格：10-160SDG系列
Main products：Ultrasound piezoelectricceramics frequency components、Medical microporous atomizing slices、High frequency atomizing slices、Power ceramic slices、High precision laser microporous processing
phone number：180-0661-9680
本产品适用于美容补水产品，车载净化加湿器，桌面加湿器，是目前市面上小型款也是稳定的一款雾化片产品。具有和20-16雾化片相等相似的雾化效果。我司10-160K雾化片常规产品在5-8微米间，小孔径3微米用于医疗理疗雾化呼吸器。
This product is suitable for cosmetic moisturizer, car purification humidifier, desktop humidifier. It is a small and stable atomized sheet product on the market at present. It has the same atomization effect as the 20-16 atomizing sheet. Our company's 10-160k atomizing sheet is a conventional product with a diameter of 5-8 um and a small aperture of 3 um, which is used for medical physical therapy atomizing respirator.
频率160K，电容量1200PF。车载加湿净化器雾化内置400，5-6微米，不湿。补水美容仪用5-7微米。医疗用3-4微米。

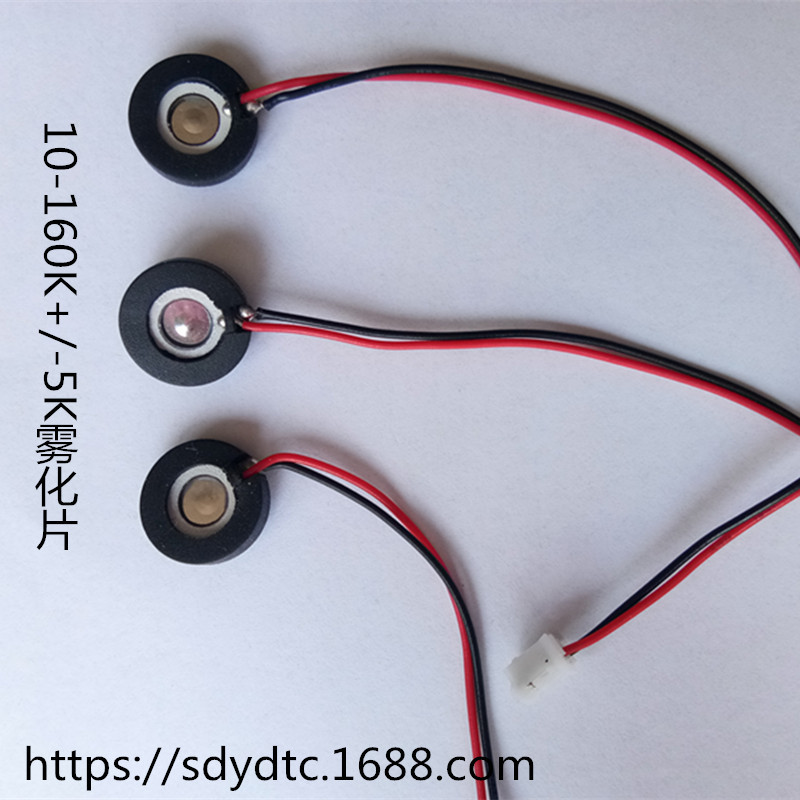

黑色橡胶圈外径13mm,内径7.0mm,厚度3.2mm.
SUS不锈钢片直径10mm,PZT厚度0.6mm.电子导线红黑线长度30#*80mm,端子线默认长度2.0/2P*100-120mm.
驱动DC3-5V（干电池锂电池），功率1-2W。
可直接贴水及上棉条雾化。
Frequency 160K, capacitance 1200PF. The vehicle humidification purifier is equipped with 400, 5-6 μ m atomization, not wet. 5-7 microns for water replenishing beauty instrument. 3-4 microns for medical use.
The outer diameter of black rubber ring is 13mm, the inner diameter is 7mm, and the thickness is 3.2mm
Sus stainless steel sheet diameter is 10 mm, PZT thickness is 0.6 mm, red and black wire length of electronic wire is 30 × 80mm, and default length of terminal wire is 2.0/2p * 100-120mm
Drive dc3-5v (dry cell lithium battery), power 1-2W.
It can be directly pasted with water and atomized with cotton strips.
................................................
..........................................
