- 品牌：Qiandi
- 系列：Desktop platform scale electronic scale
- 安装类型：Welding
- 应用领域：测量仪器
- 是否跨境出口专供货源：否
- 货号：928D
- 规格：928D-75kg-34x34x3.0mm
- 型号：928D
- 量程：75kg
- 防护等级：IP65
广州芊迪公司，批量供应电子秤、吊钩秤、行李秤、四角台秤LoadCell压力称重传感器，铝件弹性体，钢片弹性体，尺寸规格量程，可来图来料来样订做，按时供货，品质保证！
Qiandi(Guangzhou) Electronic Technology Co., Ltd. supplies electronic scales, hook scales, luggage scales, four-corner platform scales LoadCell pressure load cells, aluminum elastomers, steel sheet elastomers, dimensions and specifications, and can be customized according to incoming materials and supplied on time. Quality Assurance!
称重传感器产品按需定制，咨询热线：18102253441
联系人：李先生
如您需要拍下产品，拍前，请务必和卖家确认所需规格（包括装配尺寸等）及引线长度。
Load cells products are customized on demand, Sales hotline: +86-18102253441
Contact person: Mr. Paullee
If you need to take a picture of the product, please be sure to confirm the required specifications (including assembly dimensions, etc.) and lead length with the seller before taking the picture.
一、应用范围 Scope of application
家用人体电子秤、菜市场电子秤、商场用电子秤、电子厂台秤，电子秤、吊钩秤、行李秤、货车过磅地磅、智能设备、自动化设备测力称重传感器等。
Household electronic scales, electronic scales for vegetable markets, electronic scales for shopping malls, electronic factory platform scales, electronic scales, hook scales, luggage scales, truck weighing scales, intelligent equipment, automated equipment, force measuring load cells, etc.
二、规格与量程与配件自身重 Specifications and ranges and the weight of accessories
称重传感器规格(长 x 宽 x 高 - mm ) Load cell specifications (length x width x height-mm): 34x34x3.0
量程 Range：75kg
自身重 Self-weight：20.8g/pcs
精度 Precision：225.0g
技术要求（参数仅供参考，请以实际使用参数为准）
Technical requirements (parameters are for reference only, please refer to actual parameters)
75kg 参数Parameter：
1.量程Range：0~75kg
2.输出灵敏度Rate output： 2.0±0.2mV/V
3.非线性Non-linear： 0.05%F.S
4.滞后Hysteresis： 0.05%F.S
5.重复性Repeatability： 0.05%F.S
6.蠕变Creep： 0.05%F.S/3min
7.零点输出Zero balance： ±0.5mV/V
8.输入阻抗Input resistance： 1000±10Ω
9.输出阻抗Output resistance： 1000±10Ω
10.使用温度Operating temperature： 0~+45℃
11.接线方式Wiring： 红（电源+）、黑（电源-）、绿（信号+）、白（信号-）Red (power +), black (power -), green (signal +), white (signal -)
12.零点温度漂移Zero temperature drift： 0.05%F.S/10℃
13.温度灵敏度漂移Temperature sensitivity drift： 0.05%F.S/10℃
14.绝缘阻抗Insulation resistance： ≥2000MΩ
15.激励电压Excitation voltage： 3~12VDC
16.过载能力Overload capacity： 150%F.S
17.四角误差Four corner error： 无 Non
18.引线焊接Wire bonding： φ0.8mm x 长long405mm（端子排线可按需定制(Terminal cable can be customized as required)）
三、产品图样 Products samples image show

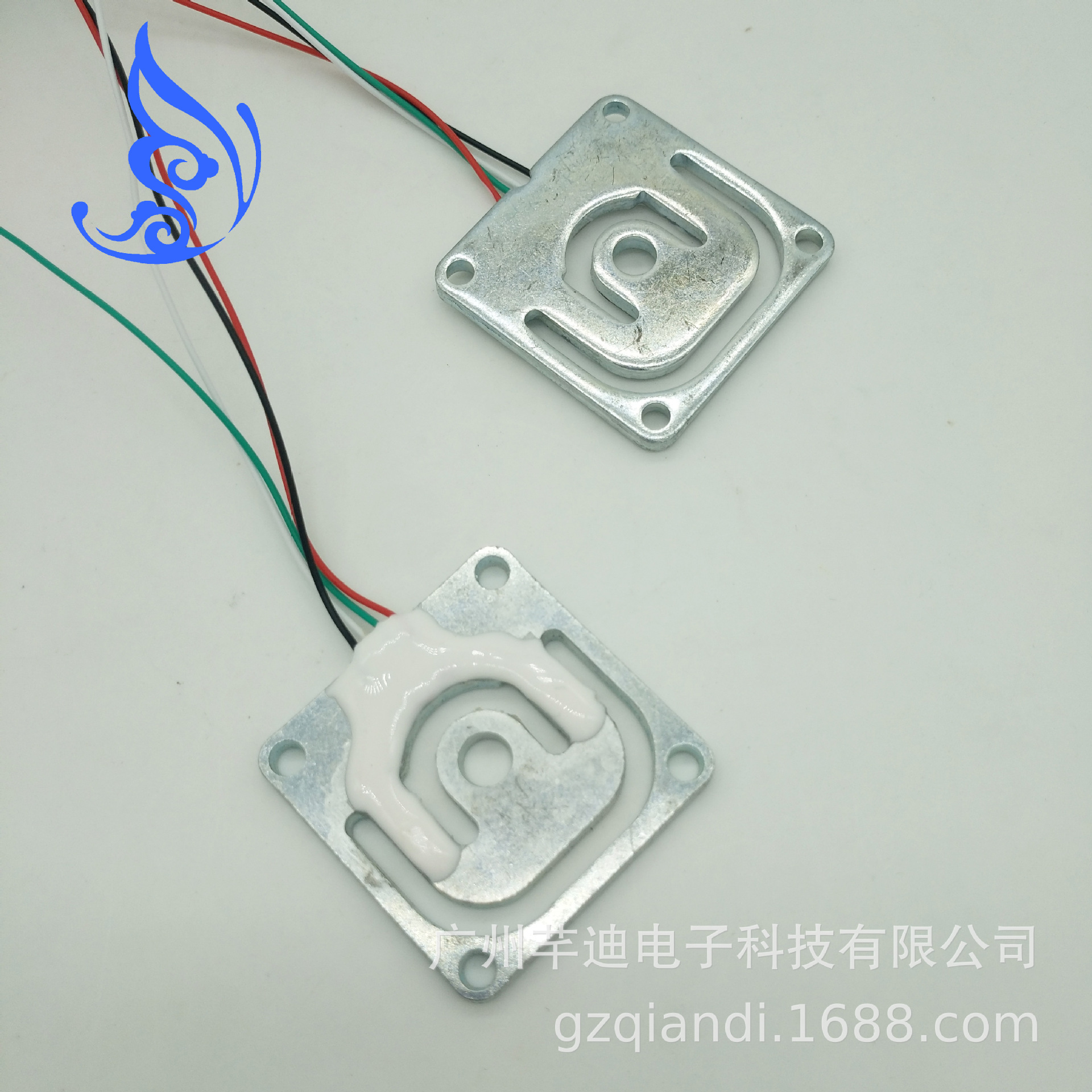

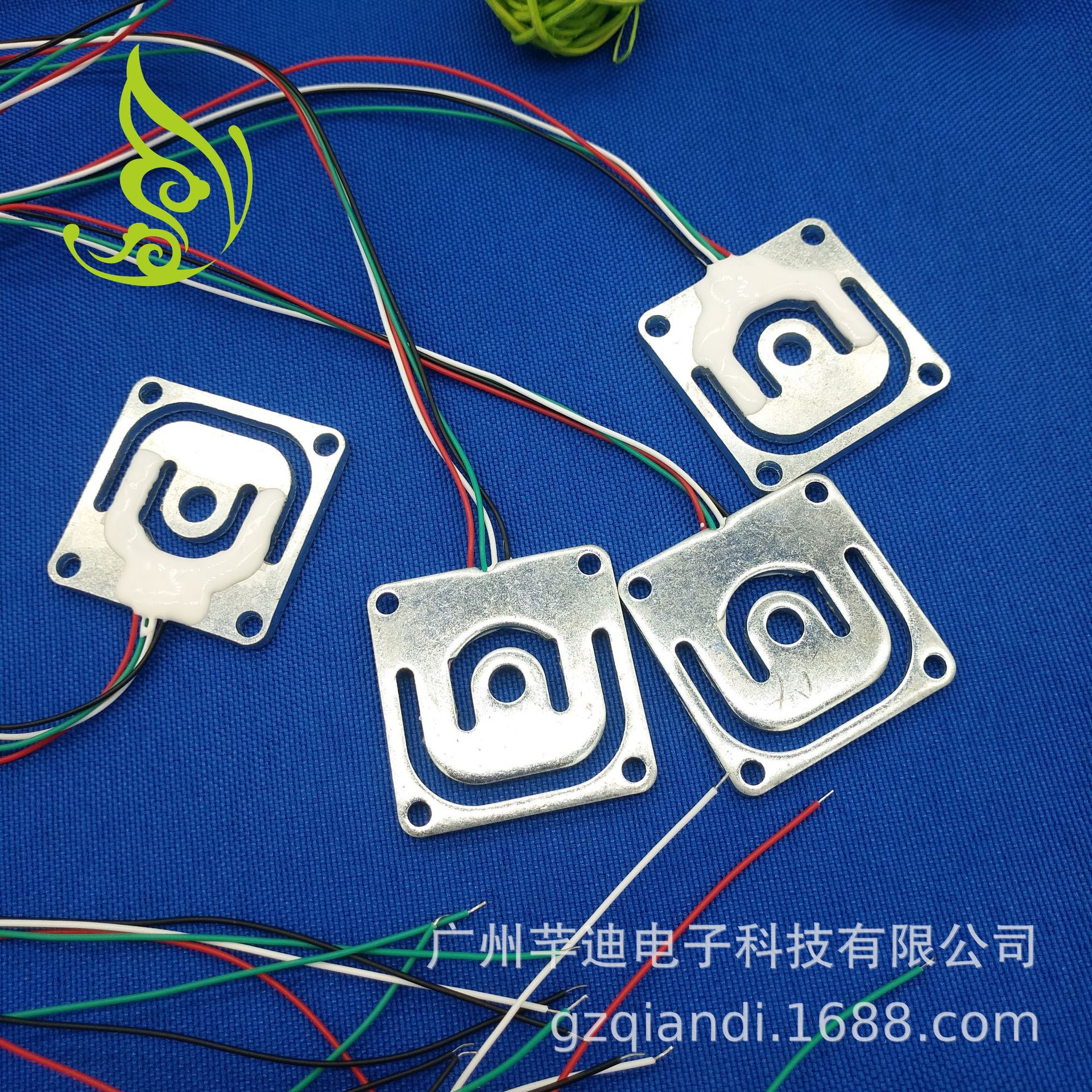

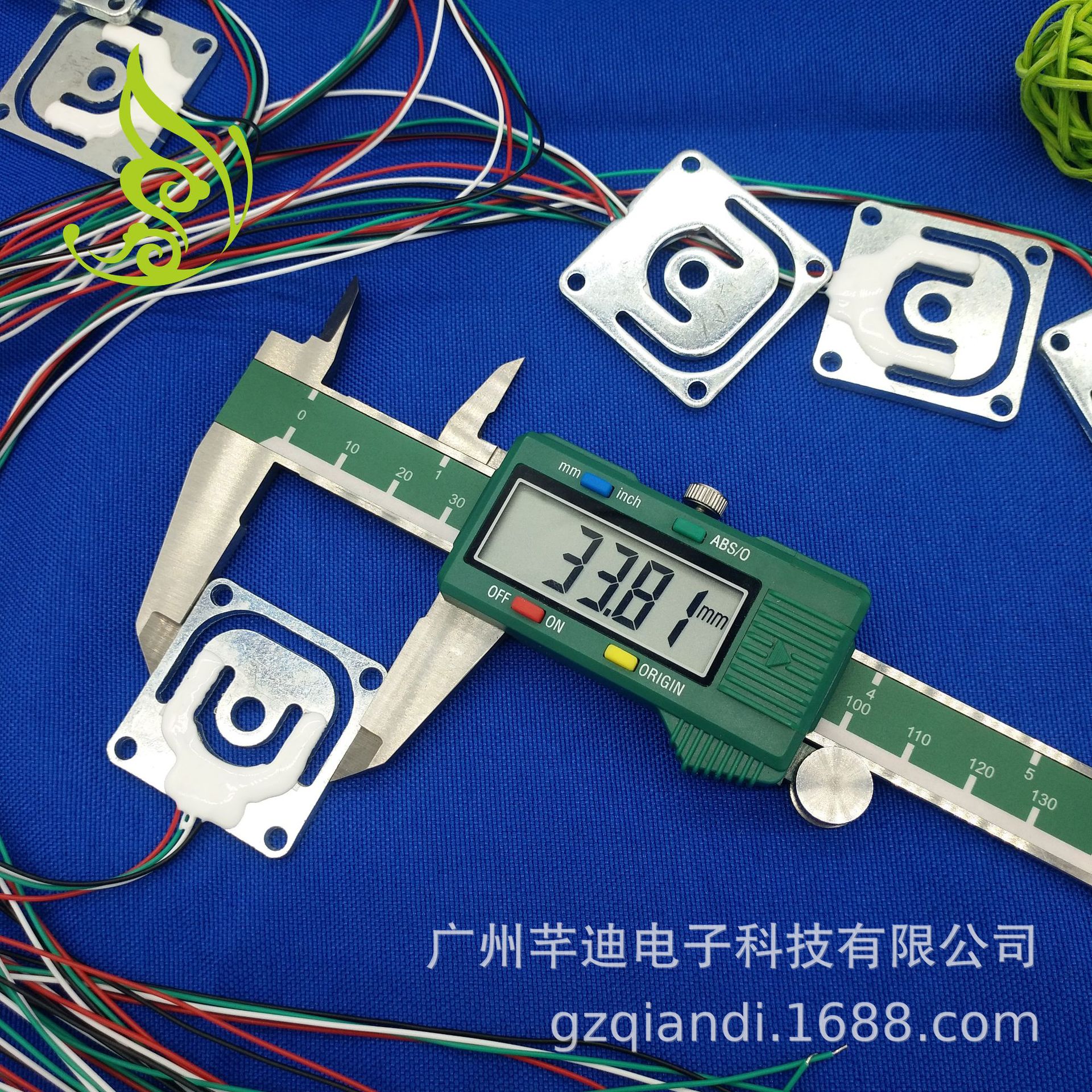

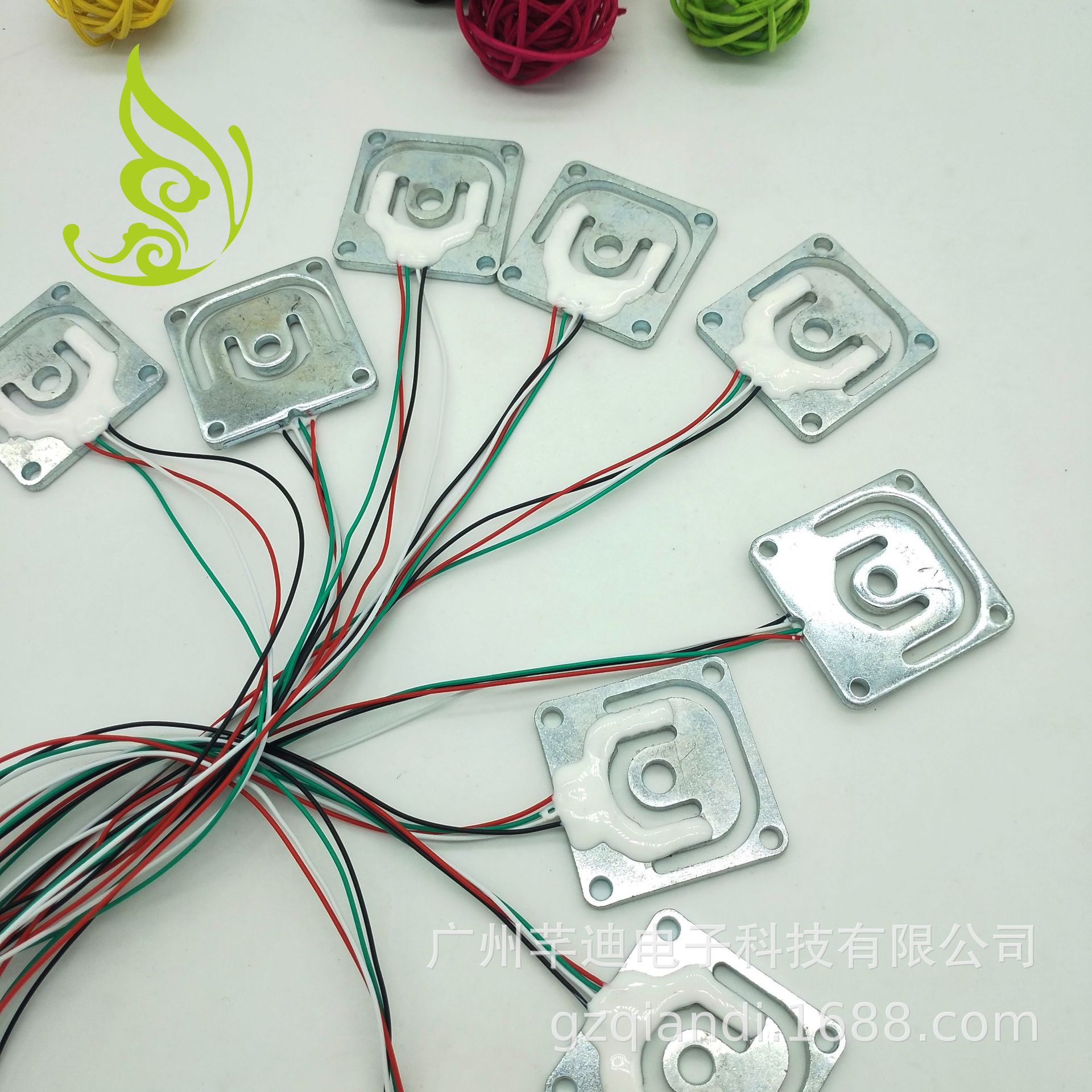

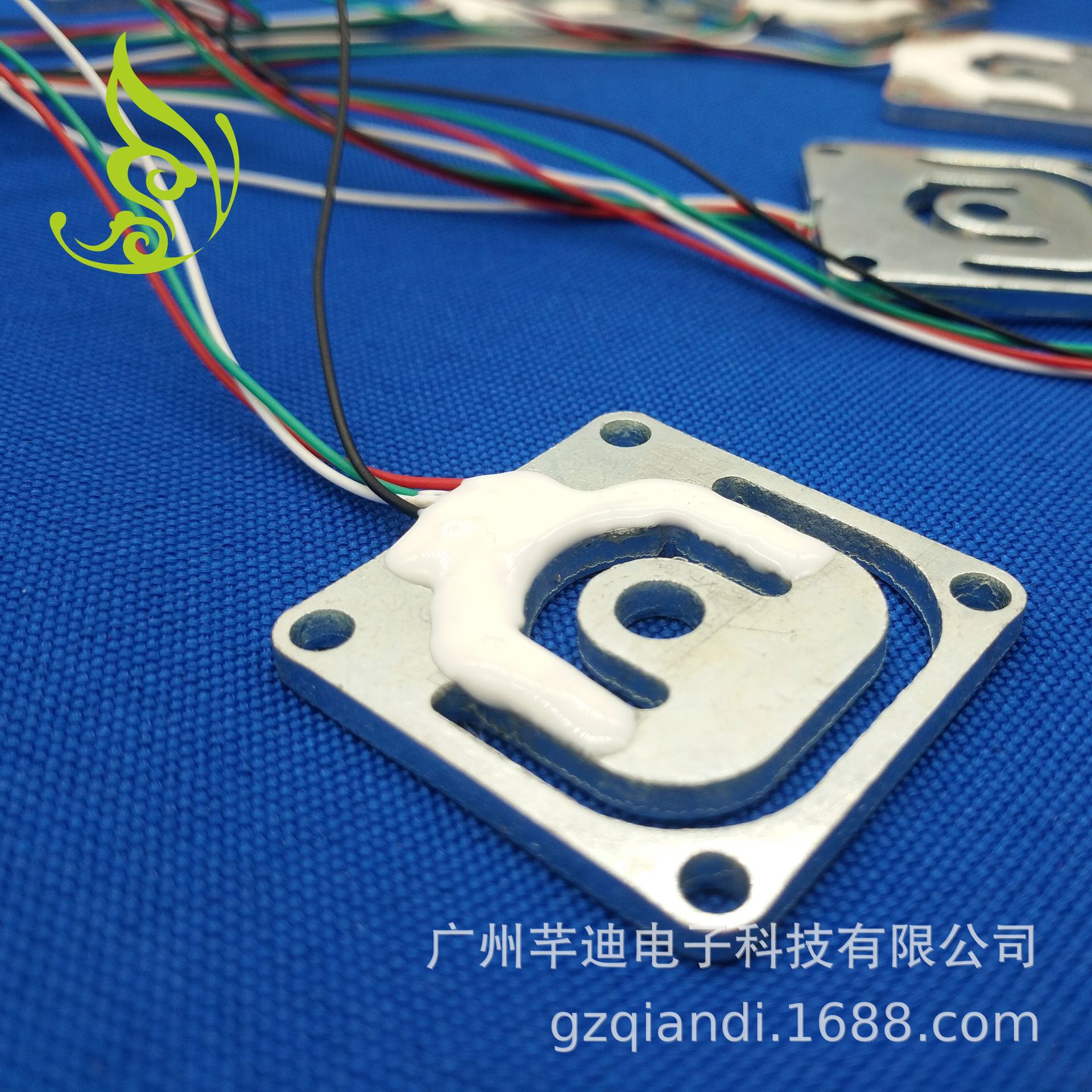

75kg-34x34x3.0mm 全桥钢片称重传感器图示
Diagram of full bridge steel sheet load cell
50kg钢片传感器图示 34x34x2.5mm
50kg-34x34x2.5mm Steel sheet sensor image show
四、产能及货期 Capacity and lead time
1. 铝件基材采用精密数控机床加工，钢件冲压尺寸较为精准，品质保证，3000-4500 pcs/天。
The base material of aluminum parts is processed by precision CNC machine tools, and the stamping size of steel parts is more accurate, and the quality is guaranteed, 3000-4500 pcs/day.
2. 货期一般需：15-25天，因不可抗力因素及假期影响，每订单货期，可能会延迟至30天。产品页面货期属性仅供参考。
The delivery period is generally: 15-25 days. Due to force majeure factors, the delivery period for each order may be delayed to 30 days.The product page delivery date attributes are for reference only.
五、价格 Price
欢迎您来电咨询洽谈订购！产品标题属性，及内页所提供单价、图文，默认非您所需规格单价，如有需要时，须以洽谈之报价及对应产品规格参数（线序、线径装配尺寸需求）为准，敬请留意。
You are welcome to inquire, negotiate and order!The product title attribute, unit price, graphics and text provided on the inner page are not the unit price of the specifications you need by default. If necessary, the negotiated quotation and the corresponding product specifications (wire sequence, wire diameter assembly size requirements) shall prevail. Please pay attention.
六、联系方式 Contact information
手机 Cell phone： +86-18102253441
联系人 Contact perons：李先生 Mr. Paul Lee
